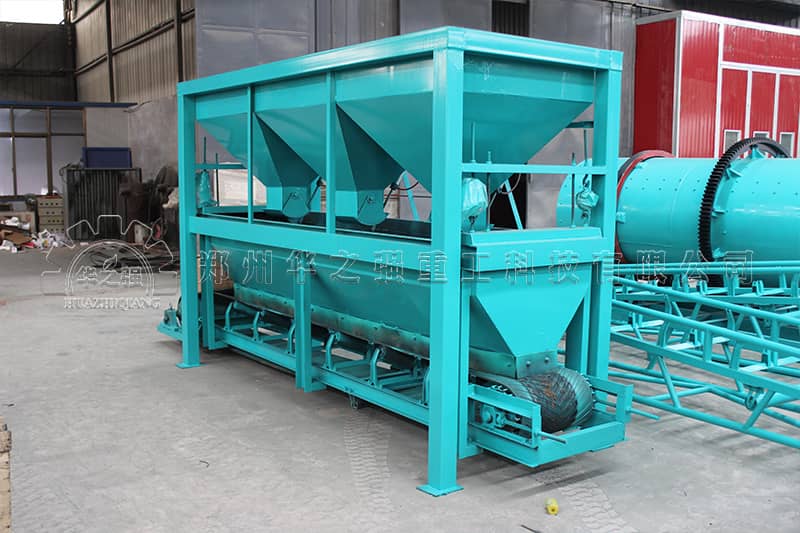

多倉單秤靜態自動配料系統
用途與特點：

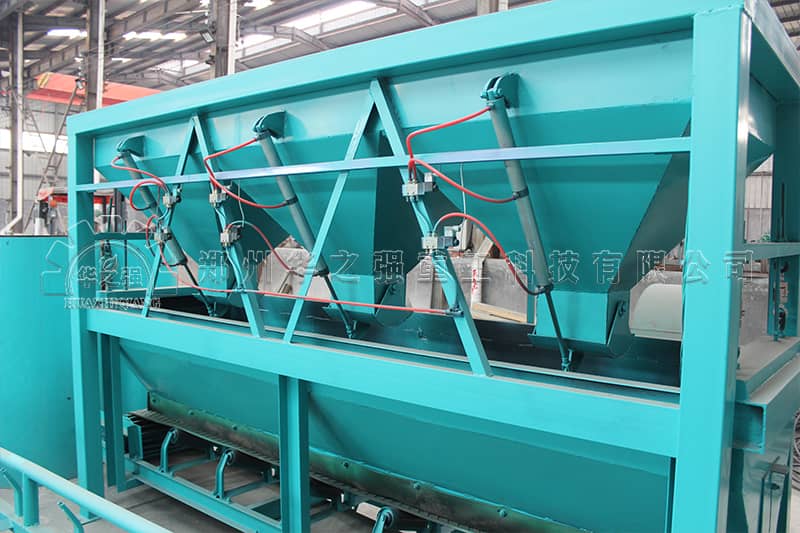

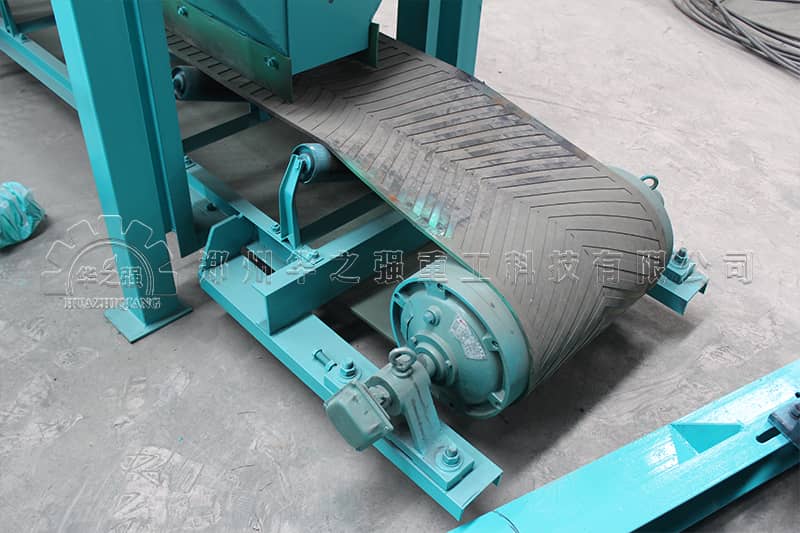

多倉單秤自動配料機主要適用于3-8種物料的混合、配料、給料。該機采用電腦秤進行自動控制，用氣動門控制主料倉定量供料，物料經混合料倉混合后用皮帶機自動送出。該機具有操作簡單，配料精度高、物料配比可隨意調整，便于安裝及可移動等優點。
Batching System Series
Multiple Silos Multiple Weigh Static Automatic Batching System:
Use and Features:
The multiple silos single weigh static batching machine is mainly suitable for mixing, batching and feeding of 3-8 kinds of materials. The system is automatically controlled by a computer scale. The pneumatic valve is used to control the material supply in the main bin. The material is mixed in the mixing bin and sent automatically by the belt conveyor. The machine has the advantages of simple operation, high batching accuracy, adjustable material ratio, easy installation and movement.
技術參數
|
型號 |
產量 （公斤/次量） |
倉數 |
功率（KW） |
外形尺寸 （長×寬×高） |
|
PLZ1000 |
500-750 |
3-8個 |
3-11 |
（3100-8100）×1200×1800 |
|
PLZB1000 |
|
|
3-11 |
（3100-8100）×1300×2500 |
|
PLZ1200 |
750-1000 |
3-8個 |
4-15 |
（3700-9700）×1300×2150 |
|
PLZB1200 |
|
|
4-22 |
（3700-9700）×1400×2850 |
|
PLZ1500 |
1000-1500 |
3-8個 |
5.5-22 |
（4500-12200）×1600×3000 |
